Conveyor Belt Roller Protection

New from ISENMANN - Conveyor belt roller protection.

Polyurethane products proven by ISENMANN in screening and wear technologies have now been applied to conveyor technology as well.

The development of new ring support models

A number of popular support ring models in combination with long life roller bodies in optimised support ring configurations have been developed to help lower production, maintenance and cleaning costs.

Features:

  • The lower belt rollers feature a 2.9mm thick roller shell and reinforced bearings.
  • External splash guard caps inclusive of built-in felt rings are fitted as an accessory for extended working life.

Additionally, the support ring configuration has been optimised in order to prevent roller shell destruction due to cutting of the belt. The support ring configuration is especially important because it is one of the most common failure criteria for lower belt roller destruction.

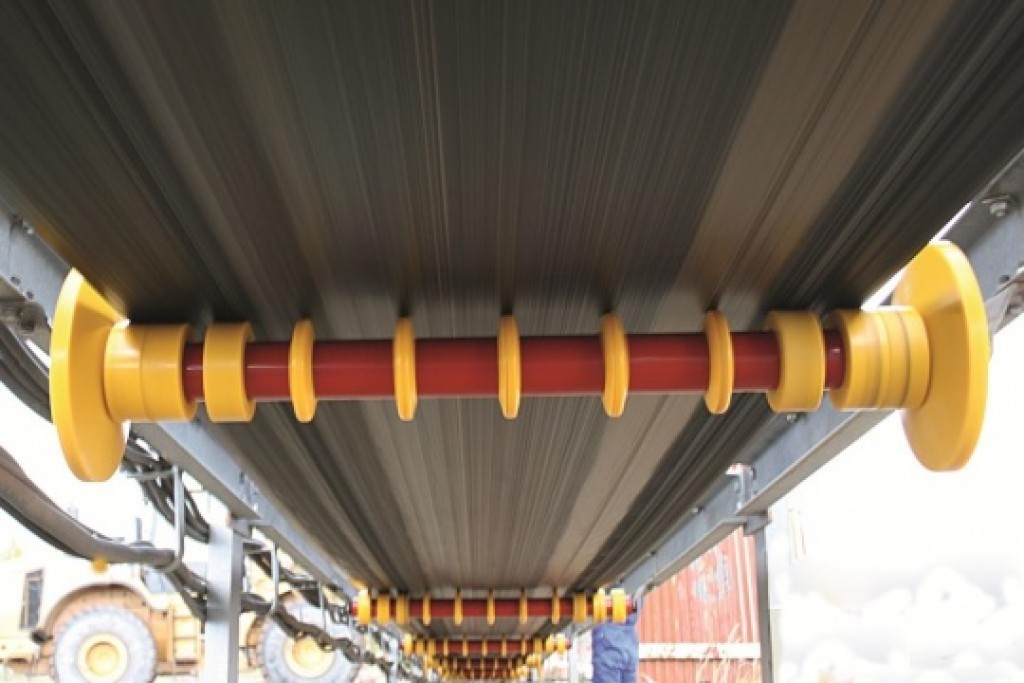

Lower belt rollers with lateral polyurethane support discs for belt guidance also ensure that belt and conveyor system structural damage is avoided.

To complete lower belt roller assemblies fitted with support rings and support discs, ISENMANN also offer individual support rings and support discs for self assembly.
